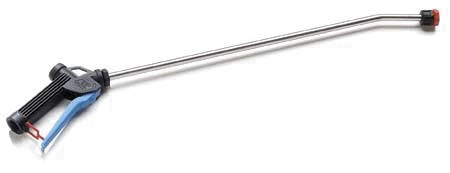

Stainless Steel Spray Wand with Gun (CP SS Series)

Up




Description:  Complete with Universal Blue Lever gun with body P.P. reinforced with F.G. Internal parts are in stainless steel and seals are in Viton. The stainless steel spray wand is available in the following length 24”(600mm) – 30”(750mm) – 35” (900mm). Complete with fan nozzle 110° in thermoplastic material ( POM ) and nozzle protection.

Includes a stainless steel cup filter 50 Mesh positioned in the nozzle holder.
Other tip sizes available upon request.

Technical Specifications:


Max Pressure350 psi
Min/Max Temperature-15° to +50°C / +5 to +120°F
Inlet1/2"
Materials
Spray WandStainless steel
Body and shutterPolypropylene + FV
Seat and o-ringsViton
Weight0.70 lbs













Other tip sizes available upon request.

Model NameModel NumberLengthTip Size/Spray Angle
CP 600 SS1502060224"04 (1.1mm)/110°
CP 750 SS1502070230"04 (1.1mm)/110°
CP 900 SS1502090235"04 (1.1mm)/110°











Click here to request price on this Spray Wand.



Proud distributor of Chierici Tito s.r.l. products.
